How Do I Perform Equal Variance Tests (Barlett, Levene and Welch's ANOVA) in Excel Using SigmaXL?

Bartlett’s Test



Bartlett’s Test is similar to the 2 sample F-Test (SigmaXL > Statistical Tools > 2 Sample Comparison Test) but allows for multiple group comparison of variances (or standard deviations). Like the F-Test, Bartlett’s requires that the data from each group be normally distributed but is more powerful than Levene’s Test.

  1. Open Delivery Times.xlsx, click on Sheet 1 tab.

  2. Click SigmaXL > Statistical Tools > Equal Variance Tests > Bartlett. Ensure that the entire data table is selected. If not, check Use Entire Data Table.

  3. Click Next. Ensure that Stacked Column Format is checked. Select Delivery Time Deviation, click Numeric Data Variable (Y) >>; select Floor, click Group Category (X) >>.

    Bartlett's Test


  4. Click OK. The results are shown below:

  5. Bartlett's Test for Equal Variance

  6. All 10 Anderson-Darling Test P-Values are > .05 indicating that all group data are normal. Since the assumption of normality is met, Bartlett’s is the appropriate test to use. If any one of the groups have a low P-Value for the Normality test, then Levene’s test should be used.

  7. With the p-value = 0.63 we fail to reject H0; we do not have evidence to show that the group variances are unequal (practically speaking we will assume that the variances are equal).

  8. If the Equal Variance test is only being used to test the assumption for use in ANOVA then it is not necessary to examine the Multiple Comparison of Variances. However, in the context of a process improvement project, we often do want to know which groups are significantly different. This can give us important clues to identify opportunities for variance reduction.

  9. With a “Fail-to-Reject H0” it is unnecessary to review the Multiple Comparison of Variances or the ANOM Variances Chart, but we will do so here for demonstration purposes.

  10. The default Multiple Comparison of Variances is a matrix of F-Test Pairwise Probabilities:

    Bartlett's Test for Equal Variance

  11. Press F3 or click Recall SigmaXL Dialog to recall last dialog. Click Options. Check Display ANOM Variances Chart.

    Bartlett's Test for Equal Variance

    Note: The Confidence Level determines the alpha level (alpha = (100 – CI)/100) used to highlight the P-Values and the alpha level for the ANOM chart. However, the alpha level used to highlight P-Values in the Anderson-Darling Normality Test is always 0.05.

  12. We will not run F-Test with Bonferroni Correction in this example, but typically that would be used when there are more than 3 groups.

  13. Click OK. Click ANOM_Variances sheet tab to display the ANOM Chart:

    Bartlett's Test for Equal Variance

    The ANOM Variances chart visually shows that none of the group standard deviations are significantly different from the grand mean of all the standard deviations. It is called an ANOM Variances Chart but displays Standard Deviations for ease of interpretation (similar to a Standard Deviation S Control Chart). This does, however, result in non-symmetrical decisionlimits. The ANOM Variances chart in SigmaXL > Graphical Tools > Analysis of Means (ANOM) > ANOM Variances has an option to display Variances.

Levene's Test



Levene’s Test for multiple group comparison of variances is less powerful that Bartlett’s Test, but is robust to the assumption of normality. (This is a modification of the original Levene’s Test, sometimes referred to as the Browne-Forsythe Test).

  1. Open Customer Data.xlsx, click on Sheet 1 tab.

  2. Click SigmaXL > Statistical Tools > Equal Variance Tests > Levene. Ensure that the entire data table is selected. If not, check Use Entire Data Table.

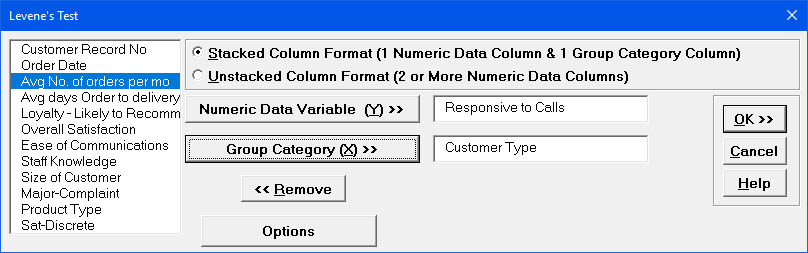

  3. Click Next. Ensure that Stacked Column Format is checked. Select Responsive to Calls, click Numeric Data Variable (Y) >>; select Customer Type, click Group Category (X) >>.

    Levene's Test

  4. Click OK. The results are shown below:

  5. Levene's Test for Equal Variance


  6. The Levene’s Test p-value of 0.0144 tells us that we reject H0. At least one pairwise set of variances are not equal. The normality test p-values indicate that all 3 groups have non-normal data (p-values < .05). Since Levene’s Test is robust to the assumption of normality, it is the correct test for equal variances (rather than Bartlett’s Test).


  7. Now that we have determined that the variances (and standard deviations) are not equal, we are presented with a problem if we want to apply classical One-Way ANOVA to test for equal group means. ANOVA assumes that the group variances are equal. A modified ANOVA called Welch’s ANOVA can be used as an alternative here.


  8. The default Multiple Comparison of Variances is a matrix of Levene Pairwise Probabilities:

  9. Levene's Test

    Customer Type 1 versus Customer Type 2 shows a significant difference in variance. Press F3 or click Recall SigmaXL Dialog to recall last dialog. Click Options. Select Tukey ADM (Absolute Deviations from Median). Check Display ANOM Levene Robust Variances Chart.

    Levene's Test

    Note: The Confidence Level determines the alpha level (alpha = (100 – CI)/100) used to highlight the P-Values and the alpha level for the ANOM chart. However, the alpha level used to highlight P-Values in the Anderson-Darling Normality Test is always 0.05.


  10. Click OK. The Multiple Comparison of Variances is a matrix of Tukey ADM Probabilities:

  11. Levene's Test


    The 1 – 2 P-Value is significant but larger than the Levene Pairwise because it adjusts for the family-wise error rate. Note that it is smaller than the Bonferroni corrected value = .0036 * 3 = .011, so more powerful than Bonferroni. The difference in power between Tukey and Bonferroni becomes more prominent with a larger number of groups, so Bonferroni is not included as an option.


  12. Click the ANOM_Levene sheet tab to display the ANOM Chart:


  13. Levene's Test


  14. The ANOM chart clearly shows Customer Type 1 has significantly higher variance (ADM) than overall and Customer Type 2 has significantly lower variance.


  15. The varying decision limits are due to the varying sample sizes for each Customer Type, with smaller sample size giving wider limits in a manner similar to a control chart. If the data are balanced, the decision limit lines will be constant.

  16. Now that we have determined that the variances are not equal, we are presented with a problem if we want to test for equal group means. Classical ANOVA assumes that the group variances are equal, so should not be used. A modified ANOVA called Welch’s ANOVA is robust to the assumption of equal variances and will be demonstrated next.

Welch's Anova Test



Welch’s ANOVA is a test for multiple comparison of means. It is a modified One-Way ANOVA that is robust to the assumption of equal variances. Welch’s ANOVA is an extension of the 2 sample t-test for means, assuming unequal variance. Nonparametric methods could also be used here but they are not as powerful as Welch’s ANOVA.

  1. Open Customer Data.xlsx, click on Sheet 1 tab.

  2. Click SigmaXL > Statistical Tools > Equal Variance Tests > Welch's ANOVA. Ensure that the entire data table is selected. If not, check Use Entire Data Table.

  3. Click Next. Ensure that Stacked Column Format is checked. Select Responsive to Calls, click Numeric Data Variable (Y) >>; select Customer Type, click Group Category (X) >>.

  4. Welch's Anova

  5. Click OK. The results are shown below:

  6. Welch's Anova

    Welch's Anova

  7. The p-value for Welch’s ANOVA is 0.0135, therefore we reject H0 and conclude that the group means for Responsive to Calls are not equal. We will explore the relationship between Overall Satisfaction and Responsive to Calls later.

  8. From the Pairwise Mean Difference (Means Matrix), we conclude that Mean Responsive to Calls is significantly different between Customer Type 1 and 2. Note that the default probabilities are Welch Pairwise. See below for more details on the multiple comparison options.

  9. A graphical view of the Responsive to Calls Mean and 95% Confidence Intervals are given to complement the Means Matrix. Note that the standard deviations are unpooled, resulting in different CI widths for each group. The fact that the CI’s for Customer Type 1 do not overlap those of Type 2, visually shows that there is a significant difference in mean Responsive to Calls. The overlap of CI’s for Type 2 and 3 shows that the mean scores for 2 and 3 are not significantly different.

  10. Later, we will explore the relationship between Responsive to Calls and Overall Satisfaction.

  11. Welch’s ANOVA Assumptions Report:


  12. Welch's Anova


    This is a text report with color highlight: Green (OK), Yellow (Warning) and Red (Serious Violation).

    Each sample is tested for Normality using the Anderson-Darling test. If not normal, the minimum sample size for robustness of the ANOVA Test is determined utilizing Monte Carlo regression equations (see Basic Statistical Templates – Minimum Sample Size for Robust tTests and ANOVA). If the sample size is inadequate, a warning is given and the appropriate Nonparametric test is recommended (Kruskal-Wallis if there are no extreme outliers, Mood’s Median if there are extreme outliers).

    Each sample is tested for Outliers defined as: Potential: Tukey's Boxplot (> Q3 + 1.5*IQR or < Q1 – 1.5*IQR); Likely: Tukey's Boxplot 2.2*IQR; Extreme: Tukey's Boxplot 3*IQR. If outliers are present, a warning is given and recommendation to review the data with a Boxplot and Normal Probability Plot.

    Tip: If the removal of outlier(s) result in an Anderson-Darling P-Value that is > 0.1, a notice is given that excluding the outlier(s), the sample data are inherently normal.

    Each sample is tested for Randomness using the Exact Nonparametric Runs Test. If the sample data is not random, a warning is given and recommendation to review the data with a Run Chart.

    A test for Equal Variances is also applied. If all sample data are normal, Bartlett’s Test is utilized, otherwise Levene’s Test is used. Since we are using Welch’s ANOVA, it is confirmed as appropriate.

    See Appendix Hypothesis Test Assumptions Report for further details.



  13. Press F3 or click Recall SigmaXL Dialog to recall last dialog. Uncheck Display Test Assumptions Report. Click the Options button. Select Games-Howell. Check Display Residual Charts as shown:

  14. Welch's Anova

    Note: The Confidence Level is used to set the level in the Mean/Confidence Interval Plot and the alpha level (alpha = (100 – CI)/100) used to highlight the P-Values. However, the confidenc level used in the Residuals Normal Probability Plot is always 95%.

  15. Click OK. The Pairwise Means Difference (Means Matrix) and Games-Howell Probability results are:

  16. Welch's Anova


  17. The significant Games-Howell Probability values above have not changed as compared to Welch Pairwise, but note that they are larger to compensate for the family-wise error rate:

  18. Welch's Anova

    Note also that the 1 – 2 Games-Howell probability is smaller than the Bonferroni corrected value = .0045 * 3 = .0135, so more powerful than Bonferroni. The difference in power between Games-Howell and Bonferroni becomes more prominent with a larger number of groups, so Bonferroni is not included as an option.

  19. Click the Welch Residuals sheet tab to display the Residual Plots:

  20. Welch's Anova

    Residuals are the unexplained variation from the ANOVA model (Actual – Predicted or Fitted values). Note that the residuals are not normally distributed - as expected from the assumptions report - but like the regular ANOVA, Welch’s ANOVA is quite robust to the assumption of normality. Also, as expected from Levene’s test for equal variances, the variability for Type 2 is less than Type 1, but Welch’s ANOVA is robust to the assumption of equal variances, so we can trust that the P-Values are valid.
