Value Stream

Lean - Value Stream Mapping

Click SigmaXL > Templates & Calculators > Lean > Value Stream Mapping to access the Value Stream Mapping template. The example on the following page is given in SigmaXL > Help > Template Examples > Value Stream Mapping.

SigmaXL Inc., Copyright © 2011-2021

Portions courtesy and copyright of Strategos, Inc. www.strategosinc.com

Notes:

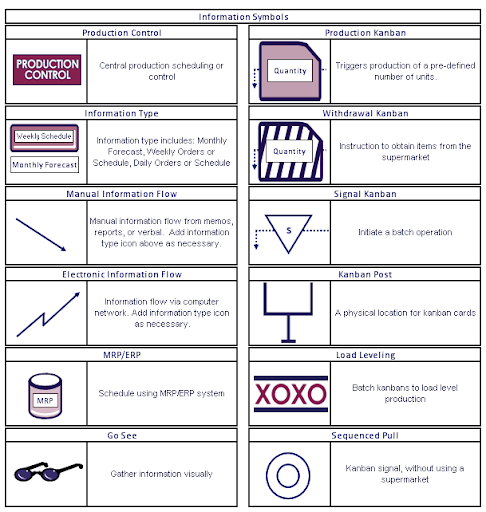

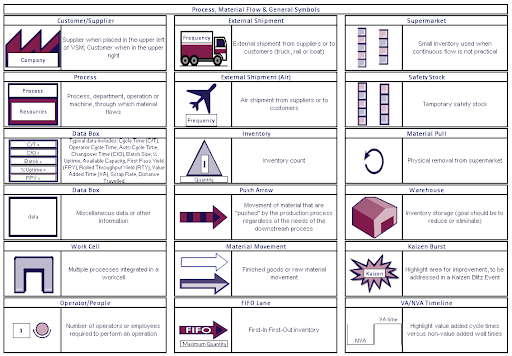

1. Copy and Paste the above symbols into a blank worksheet as needed to create the value stream map. Resize if necessary.

2. Recommended resource for Value Stream Mapping: Quarterman Lee and Brad Snyder, "The Strategos Guide to Value Stream & Process Mapping", Enna Products Corp., 2006.

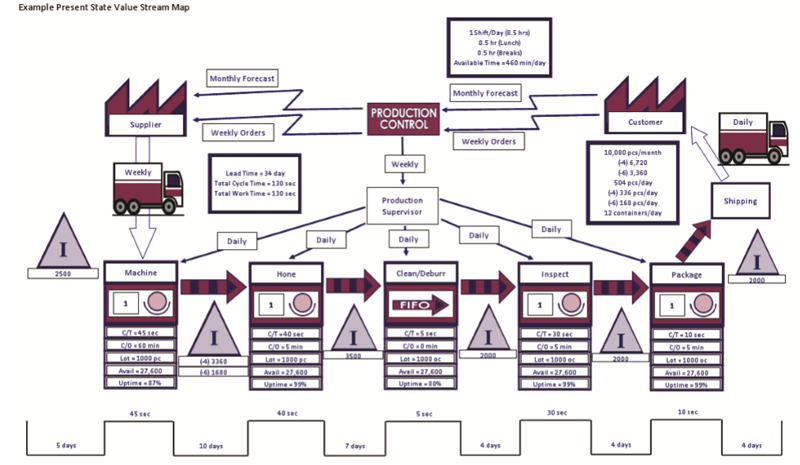

This example is courtesy and copyright of Strategos, Inc. www.strategosinc.com.
