Interval Plots

Interval Plots

Interval Plots show the mean and confidence interval, similar to the Multi-Vari chart, but do not display the individual data points. The confidence intervals are computed as done in Descriptive Statistics with the standard deviation calculated separately for each group, so they are labelled "Unpooled". (Interval Plots with confidence intervals based on pooled standard deviation are given in One Way ANOVA).

1. Open Customer Data.xlsx. Click Sheet 1 Tab (or press F4 to activate last worksheet).


2. Click SigmaXL > Graphical Tools > Interval Plots.


3. Check Use Entire Data Table, click Next

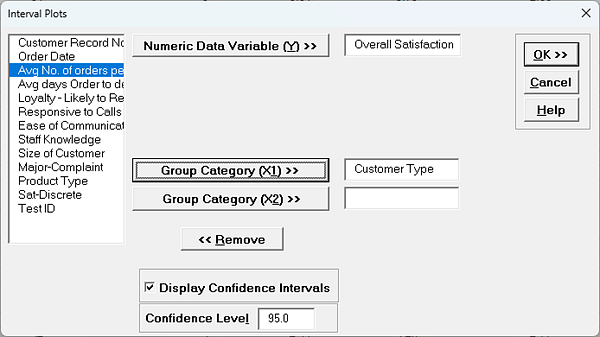

4. Select Overall Satisfaction, click Numeric Data Variable (Y) >>. Select Customer Type, click Group Category (X1) >>; check Display Confidence Intervals; Confidence Level default is 95%:



   Tip: Uncheck Display Confidence Intervals to produce a Main Effects Plot.

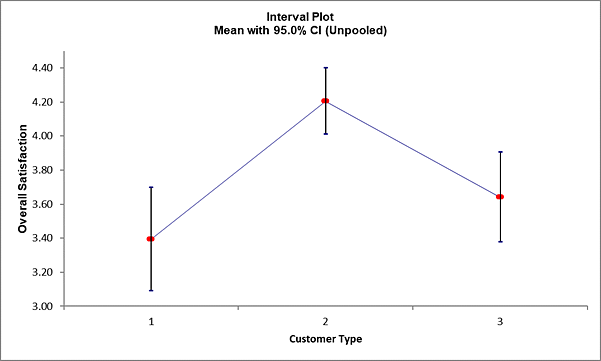

5. Click OK. The Interval Plot for Customer Satisfaction grouped by Customer Type is shown:



   The tick marks show the 95% upper and lower confidence limits. The red dot shows the mean. As noted in the Multi-Vari chart, we can see that Customer Type 2 has a significantly higher level of mean satisfaction; the lower limit does not overlap with the upper limit for Types 1 and 3. On the other hand, we see overlap of the CI's when comparing types 1 and 3. Hypothesis testing will be used to compare the mean satisfaction scores more precisely and determine statistical significance for the results.

---

Multiple X Interval Plots

Multiple X Interval Plots are similar to Multiple X Boxplots and allow you to create interval plots with one Y variable and multiple group category X's. A row of interval plots will be created, one for each X variable. This is useful for easy comparison of the effect of each category X. Confidence Intervals may be unchecked, in which case the plots are equivalent to Main Effects plots for data means.

1. Click Sheet 1 Tab of Customer Data.xlsx (or press F4 to activate last worksheet).


2. Click SigmaXL > Graphical Tools > Multiple X Interval Plots.


3. Ensure that entire data table is selected. If not, check Use Entire Data Table. Click Next.

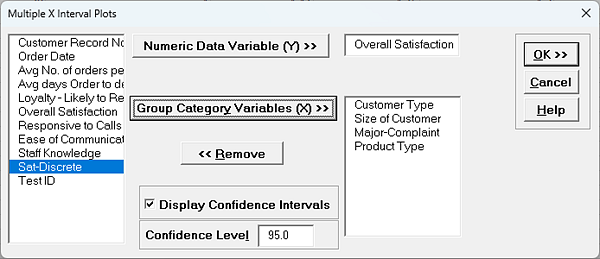

4. Select Overall Satisfaction, click Numeric Data Variable (Y) >>. Select Customer Type, Size of Customer, Major-Complaint and Product Type. Click Group Category Variables (X) >>. Check Display Confidence Intervals with Confidence Level 95%:

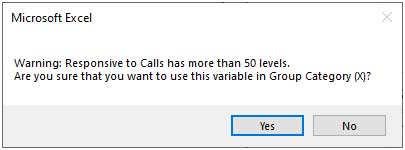

   Tip: Be careful to not select a continuous variable for Group Category Variables (X), as each unique value will be considered as a category level. If SigmaXL detects a variable with more than 50 levels a warning is given. For example, if Responsive to Calls was selected:

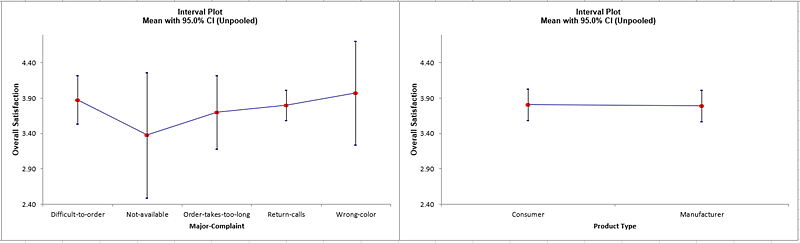

5. Click OK. A row of Interval Plots showing Overall Satisfaction by Customer Type, Size of Customer, Major-Complaint and Product Type are produced:




   The only factor with non-overlapping confidence intervals is Customer Type. Statistical significance for these factors can be formally evaluated individually using One-Way ANOVA or as a group in General Linear Model (GLM).

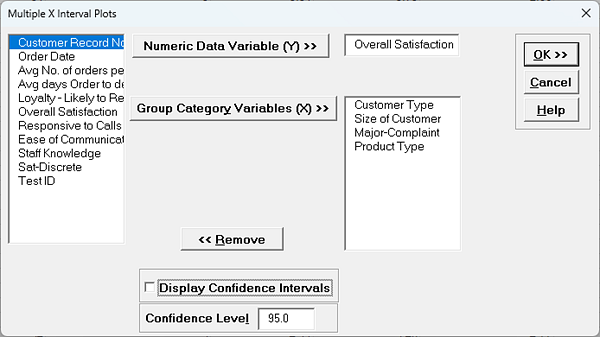

6. Now we will create Interval Plots without confidence intervals. Click Recall SigmaXL Dialog menu or press F3 to Recall Last Dialog. Uncheck Display Confidence Intervals.

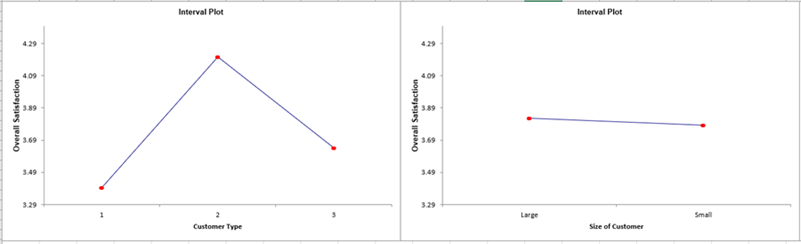

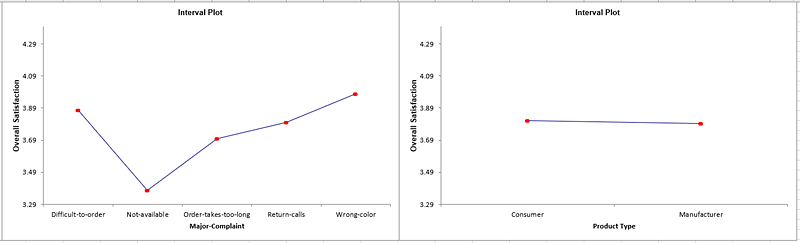

7. Click OK. A row of Interval Plots showing Overall Satisfaction by Customer Type, Size of Customer, Major-Complaint and Product Type are produced:



   These are also known as Main Effects Plots for data means, with steeper slopes noted for Customer Type and Major Complaint.
