How Do I Create Dotplots in Excel Using SigmaXL?

1. Click Sheet 1 Tab of Customer Data.xlsx. Click SigmaXL > Graphical Tools > Dotplots.


2. Ensure that entire data table is selected. If not, check Use Entire Data Table. Click Next.

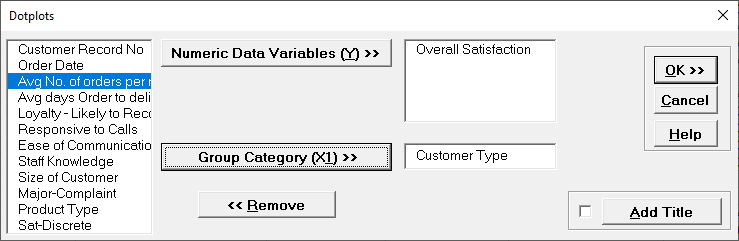

3. Select Overall Satisfaction, click Numeric Data Variable (Y) >>, select Customer Type, click Group Category (X1) >>:

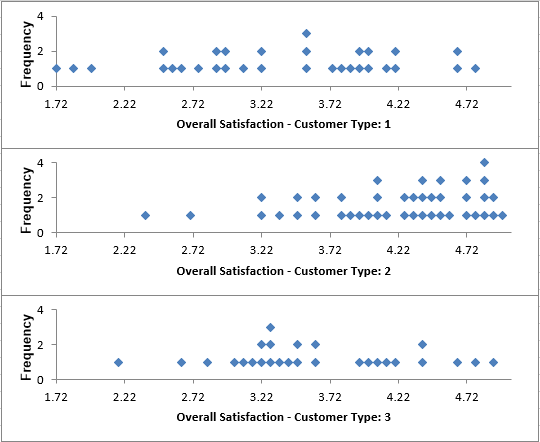

4. Click OK. Multiple dotplots of Customer Satisfaction By Customer Type are produced:




5. Since all data points are shown, dotplots are a useful alternative to Histograms, particularly when the group sample sizes are small (n < 30).
