Total Production Cost = Magazines_Produced*Production_Cost
Total Disposal Cost =
IF((Magazines_Produced-Monthly_Demand)>0,Magazines_Produced-Monthly_Demand,0)*Disposal_Cost
Net Profit = Revenue - (Total_Production_Cost + Total_Disposal_Cost)
Summary of DiscoverSim Features Demonstrated in
Case Study 2:
Create Input Distributions with Custom Discrete
Create Discrete Input Controls
Run Simulation
Run Optimization
Optimization of Magazine Production Quantity with DiscoverSim

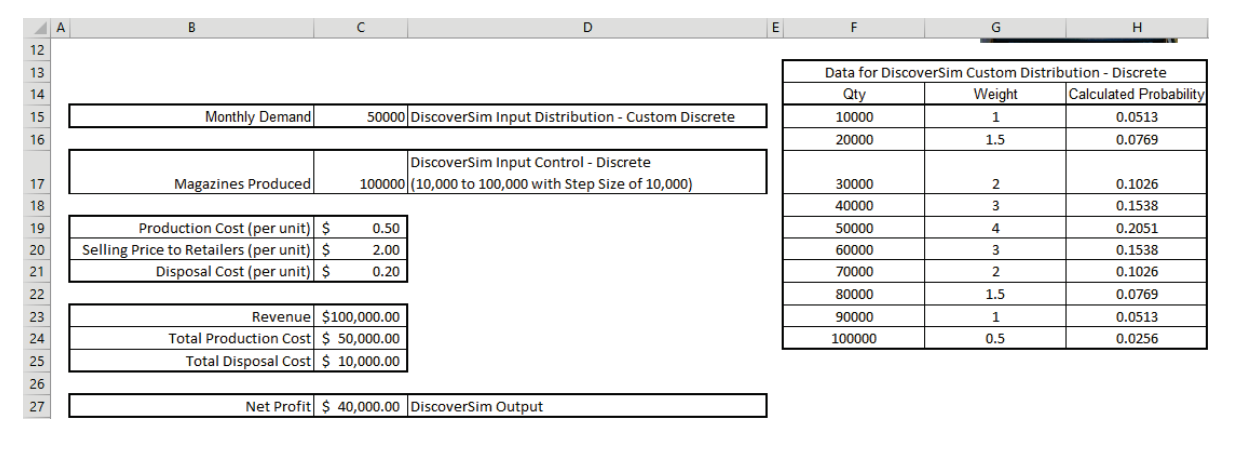

Open the workbook Magazine Production Optimization. A custom discrete
input distribution will simulate the variability in monthly demand and is specified in
cell
C15. The demand quantity data for this custom distribution is given in
cells
F15: F24 with weights specified in cells G15:G24. The
weights are converted to calculated probabilities in cells
H15:H24. A DiscoverSim Input Control (Discrete) will be used to specify
the magazine production quantity (10,000 to 100,000) at cell
C17. The output, Net Profit will be specified at cell
C27.
Click on cell C15 to specify the Monthly Demand discrete custom input
distribution. Select DiscoverSim >
Input Distribution:
Select Discrete > Custom Discrete Distribution.
Click the input name cell reference and specify cell
B15 containing the input
Name Monthly Demand (Note: spaces are replaced with
the underscore _ character for all input names). After specifying a cell reference,
the dropdown symbol changes from to .
Click the Data Range cell reference and
specify cells
F15:F24 as the data range for the custom discrete distribution.
Click the checkbook to enable Weight Range cell
reference and specify cells
G15:G24 as the weight range for the custom discrete distribution. These
weights are used to determine the distribution probabilities as displayed in cells
H15:H24.

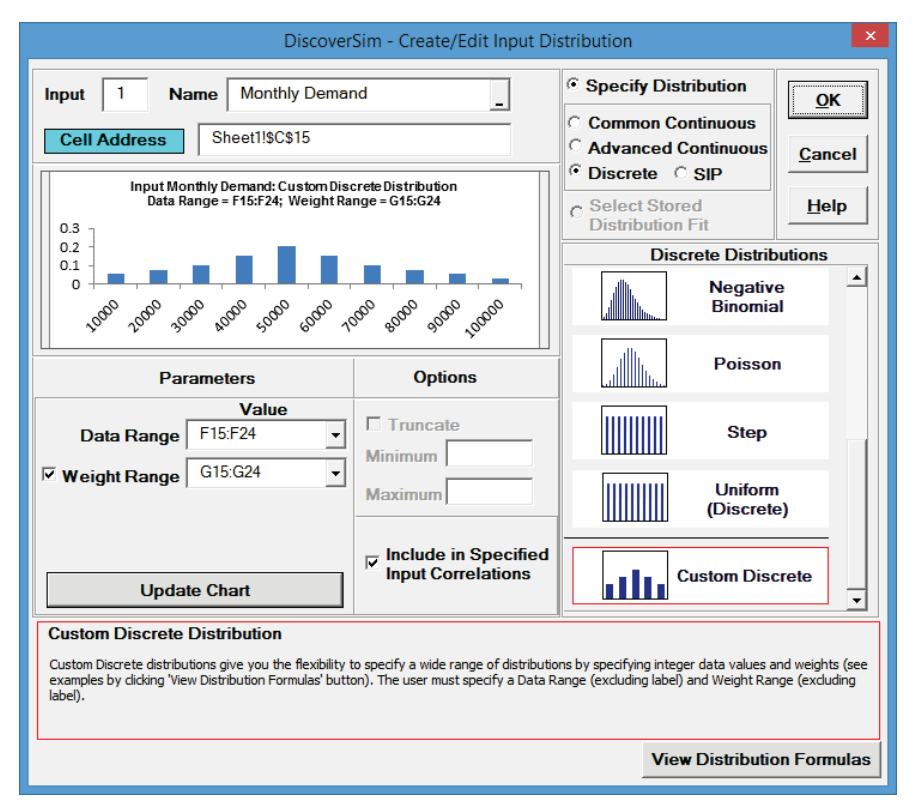

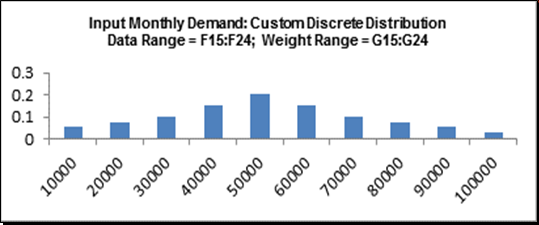

Click Update Chart to view the custom discrete distribution as
shown:
Click OK. Hover the cursor on cell C15 to view the
DiscoverSim graphical comment showing the distribution and parameter values:
Now we will add the Discrete Input Control (also referred to as a Decision Variable).
This will be used to set the magazine production quantity (multiplied by 10,000).
DiscoverSim will use Stochastic Global Optimization to determine what quantity will
maximize the mean net profit.

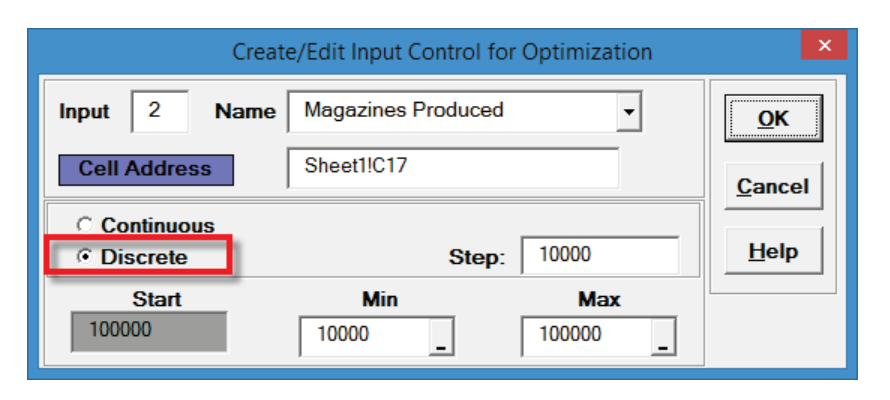

Click on cell C17. Select Control:
Click input Name cell reference and specify
cell B17 containing the Input Control name Magazines Produced.
Select Discrete (this Input Control setting will consider only discrete
values). The Start value is set to 100000 from cell
C17 (current production volume per month).
Set the Min value to 10000, Max value to 100000 and
Step to 10000 as shown:

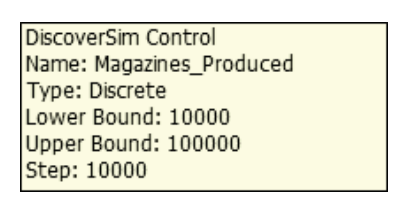

Click OK. Hover the cursor on cell C17 to view the
comment displaying the Input Control settings:
Now we will specify the output. Click on cell C27. The cell contains
the Excel formula for the Net Profit: = _Revenue - (_Total_Production_Cost +
_Total_Disposal_Cost).

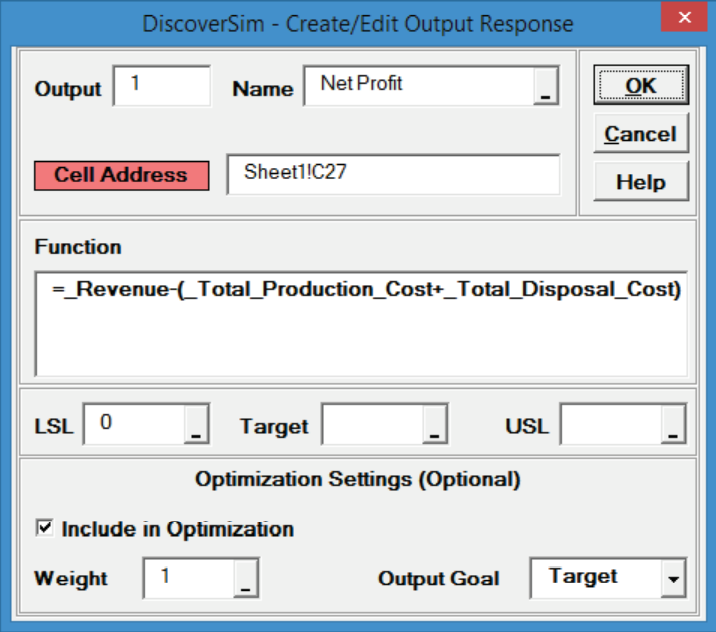

Select DiscoverSim > Output Response:
Click output Name cell reference
and specify cell B27 containing the
Output name Net Profit. Enter the Lower Specification Limit (LSL) as
0. The
Weight and Output Goal settings are used only for
multiple response optimization, so do not need to be modified in this example.
Click OK.
Hover the cursor on cell C27 to view the DiscoverSim Output
information.

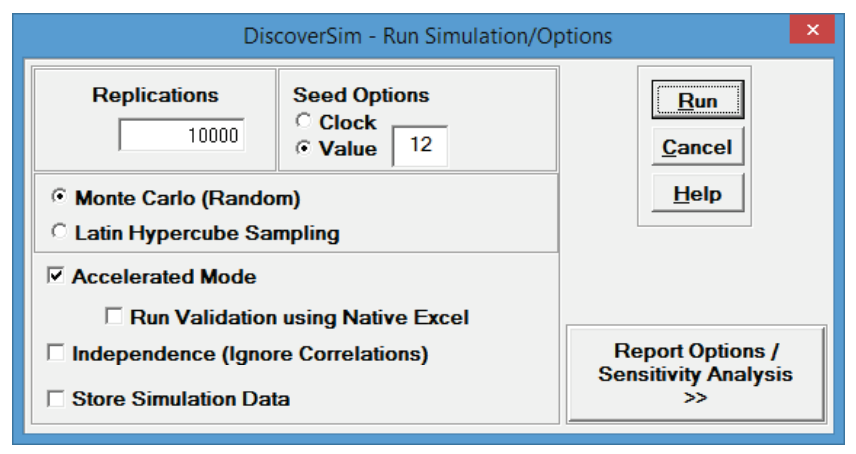

Select DiscoverSim > Run Simulation:
Select Seed Value and enter 12 as shown, in order to replicate the
simulation results given below
(note that 64 bit DiscoverSim will show slightly different results).
Click Run.

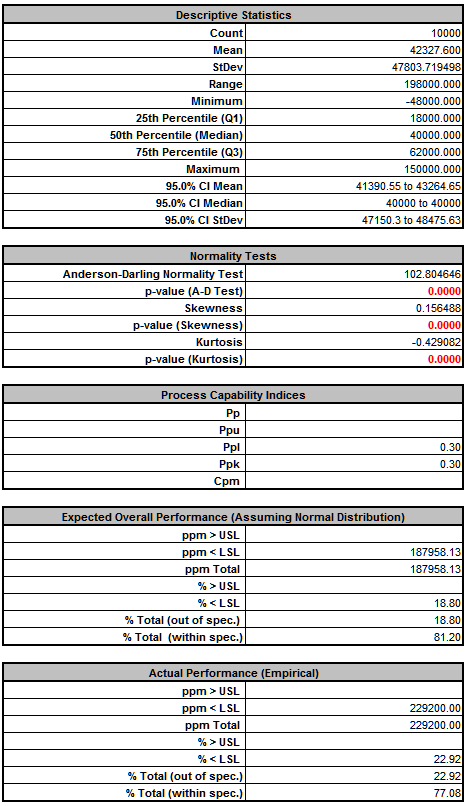

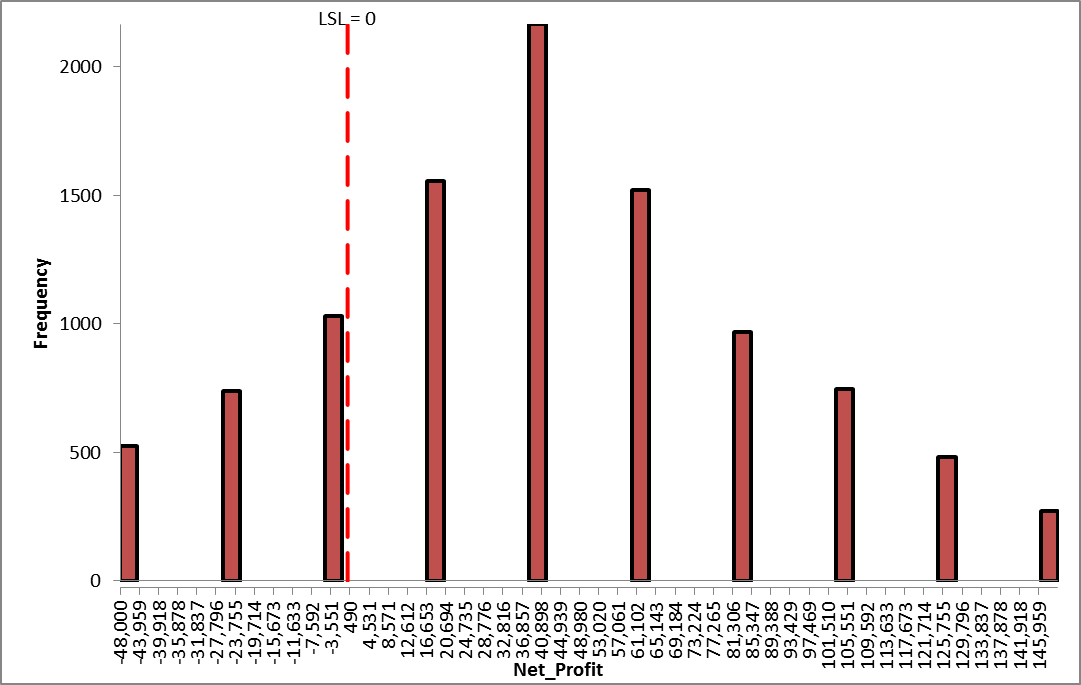

The DiscoverSim Output Report displays a histogram, descriptive statistics and process
capability indices:
The Mean Net Profit is approximately $42,300, which is good, but we also see from the
Actual Performance report, we have a 22.9% chance of monthly loss. The standard
deviation is also quite high at $47,800.
Now we are ready to perform the discrete optimization to maximize the mean of net
profit. Select

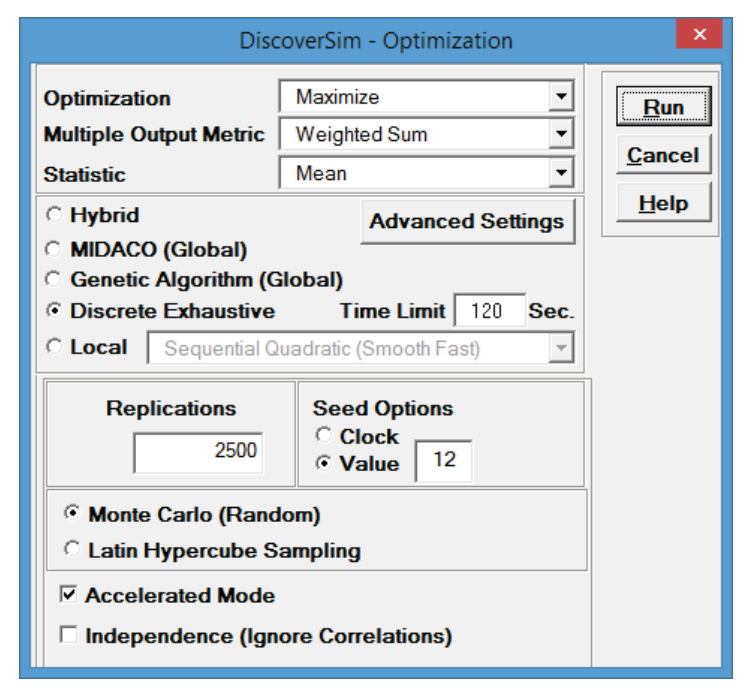

DiscoverSim > Run Optimization:
Select Maximize for Optimization Goal, Weighted Sum for
Multiple Output Metric and Mean for
Statistic. Select Discrete Exhaustive. Set
Seed Value to 12 and Replications to 2500 in
order to replicate the optimization results given below. All other settings will
be the defaults as shown:
Tip: Here we are using Discrete
Exhaustive because this particular problem is not complex, given that
there is only one input control variable with 10 discrete levels. The
Time Limit determines how long Discrete Exhaustive
will run. A single simulation run is first performed and the computation time is
measured. If the total number of discrete combinations * single run time exceed
the Time Limit, an error message is produced, so you can either
increase the Time Limit, or use a different optimization method.
Click Run.

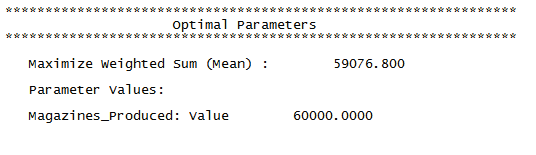

The final optimal parameter value is given as:
The optimum number of magazines to produce per month is
60,000, resulting in an expected mean profit of $59,077.

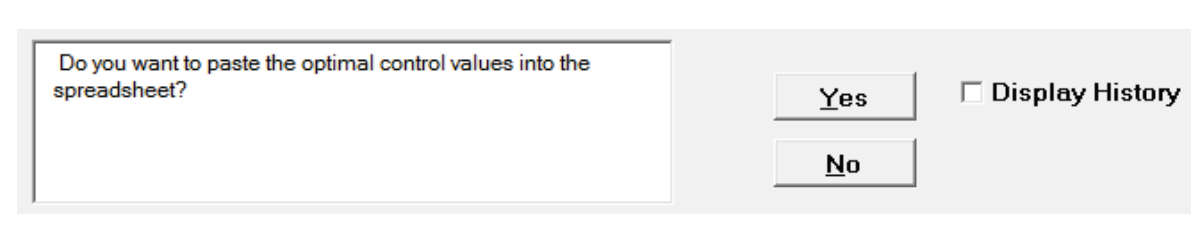

You are prompted to paste the optimal value into the spreadsheet:
Tip: If you check Display History, the complete
history of optimization iterations will be
displayed in a separate window after clicking Yes or
No to the paste prompt.

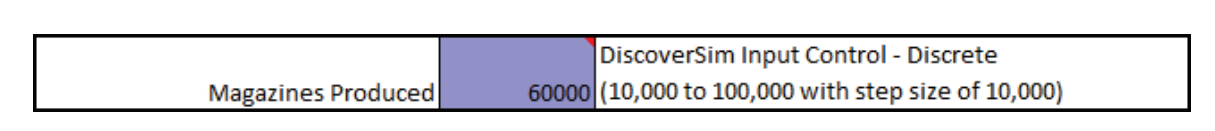

Click Yes. This sets the input control value to the optimum value of 6
as shown:

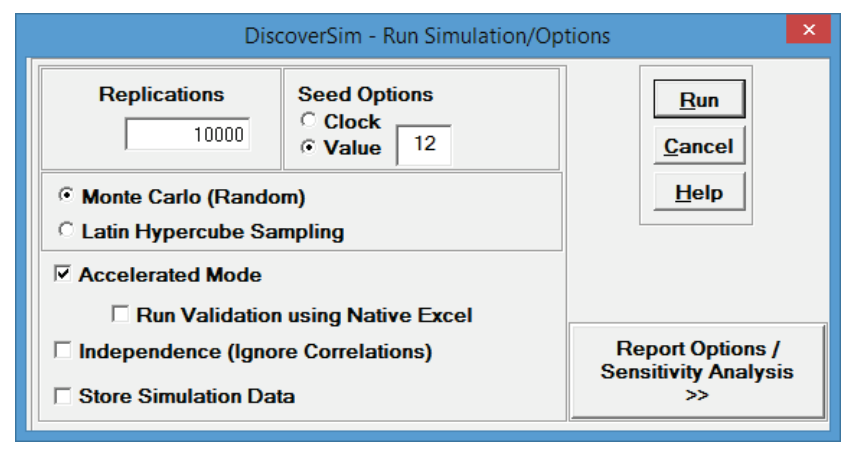

Select DiscoverSim > Run Simulation:
Select Seed Value and enter 12 as shown, in order to replicate the
simulation results given below.
Click Run.

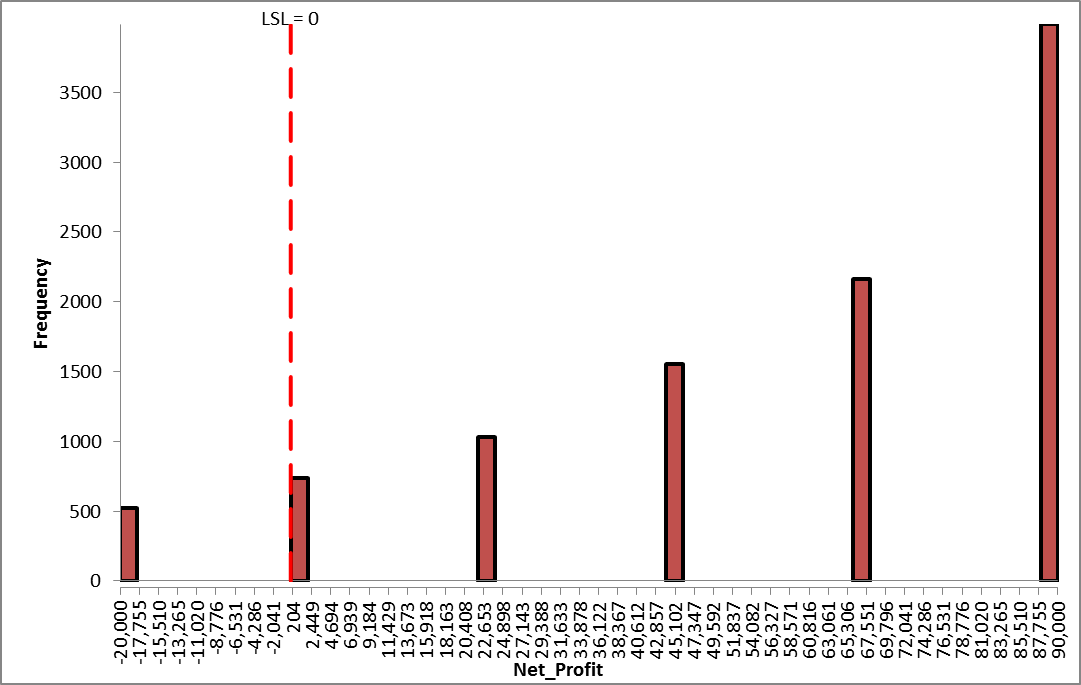

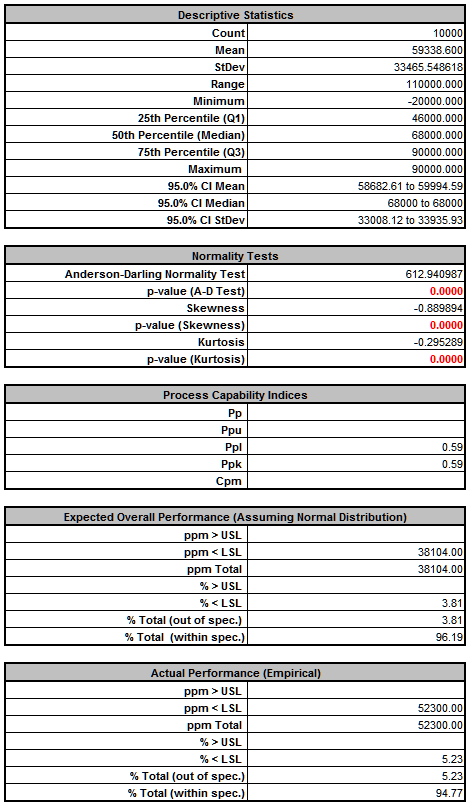

The DiscoverSim Output Report displays a histogram, descriptive statistics and process
capability indices for the optimized setting:
From the histogram and capability report we see that the expected mean net profit has
increased from $42,300 to $59,300. The standard deviation has decreased from $47,800 to
$33,500. Looking at the Actual Performance report we see a decrease in the likelihood of
a profit loss from 22.9% to 5.2%.
Obviously the quality of this prediction will depend on the validity of the custom
distribution and does not take into account hidden soft costs like customer
dissatisfaction due to lack of availability. If necessary, the model can be refined.
Nevertheless, the tool is very useful to help us to determine what our production rate
should be in order to maximize net profit.
