Custom Distributions


<< Back to Table of Contents

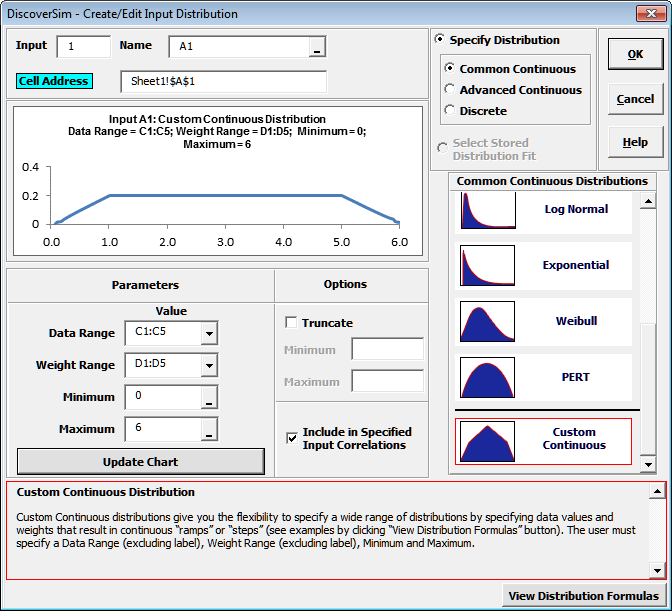

Custom continuous distributions give you the flexibility to specify a wide range of distributions by specifying data values and weights that result in continuous ramps or steps as shown in the following examples. The user must specify a Data Range (excluding label), Weight Range (excluding label), Minimum and Maximum.

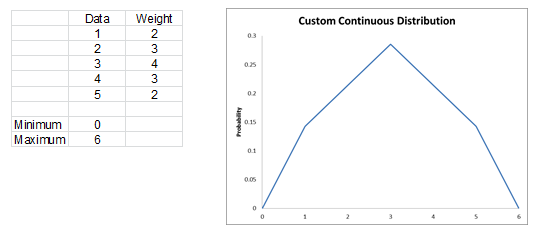

Example 1

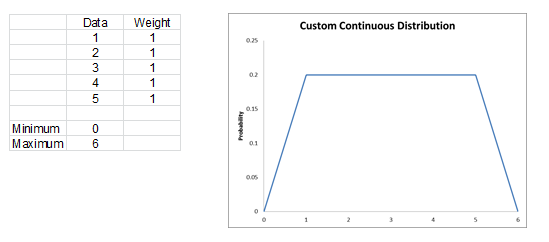

Example 2

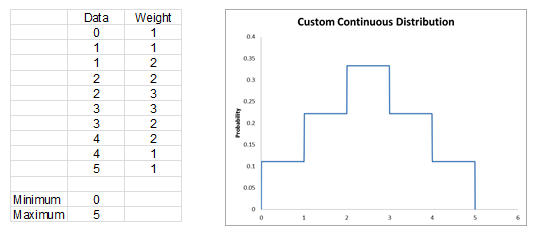

Example 3

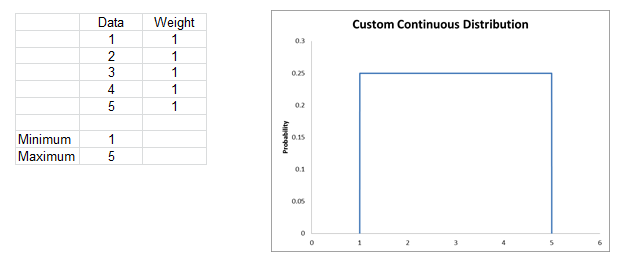

Example 4

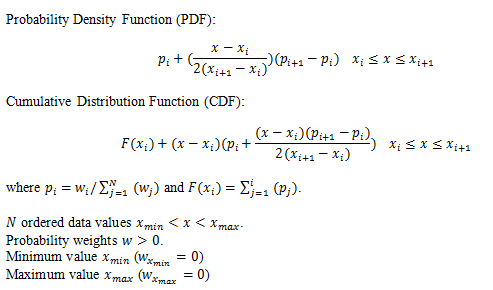

Formulas for Custom Discrete Distributions
